mold shell roasting furnace
Leehwa Casting manufactures Wax Injection Machine casting in Dongying City, Shandong Province, China. We have our own factory of Wax Injection Machine castings. Leehwa Casting provide the high quality and competitive price on Wax Injection Machine for you. Contact us now for quotation.
- 20+ years Castings manufacturing experience
- Up to 5 years of warranty
- Full support on your customised requirement
|
Item No.
|
specification
|
Unit
|
PWJ09-Q326
|
|
1
|
Maximum load of chamber
|
KG
|
200
|
|
2
|
Dust removal air volume
|
m3/h
|
2200
|
|
3
|
productivity
|
kg/h
|
600-1200
|
|
4
|
power
|
KW
|
13.4
|
|
5
|
Machine dimensions
|
mm
|
1400×1254×3450
|
Feature:

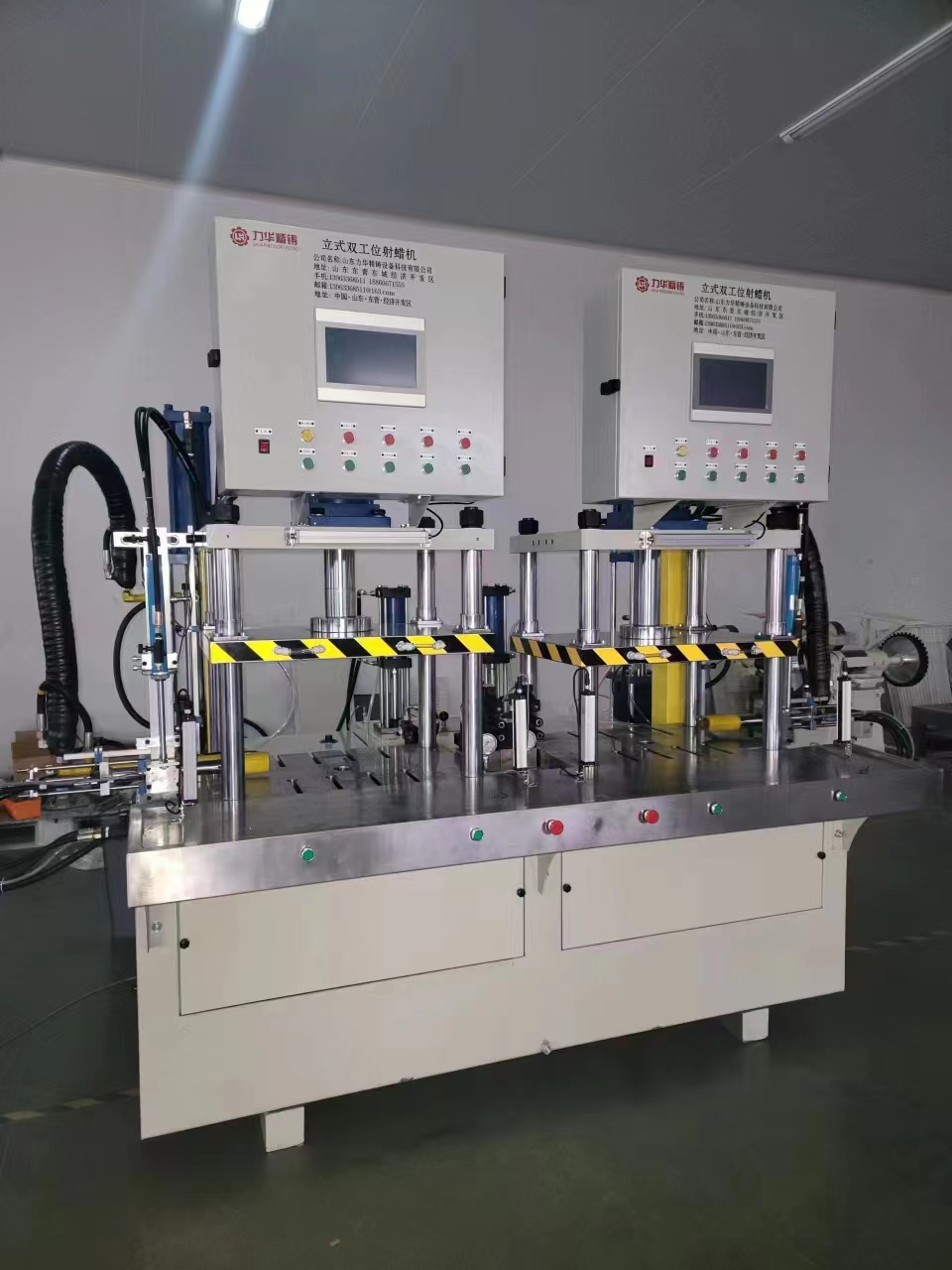

1、The equipment adopts double working tables, each table has independent pressure injection and its control unit, and the pressure of the table template can be adjusted according to the need.
2、The equipment adopts single wax storage cylinder, which has temperature control capability and can provide accurate and repeatable wax temperature, so that the wax material with set temperature can be supplied steadily and continuously. At the same time, the wax storage cylinder should be equipped with a liquid level controller, which is used to monitor the wax volume in the storage cylinder and provide control signals for the waxing device.
3、The waxizer with vacuum suction device on the wax storage cylinder of the equipment can realize automatic filling and waxing of the granular wax material to avoid over-temperature of the wax material, and it can be linked and controlled with the wax storage cylinder and vacuum suction device to realize automatic filling of the wax material.
4、The equipment should be able to send all the wax materials in the injection nozzle, pipe and wax injection cylinder back to the wax storage cylinder when the equipment is shut down.
5、The pressure injection unit can realize the smooth pressure injection of wax material, should ensure the accurate and smooth output pressure, and should not allow large fluctuation of pressure during the pressure injection process, and should be equipped with temperature monitoring.
6、Equipped with horizontal injection nozzle on the equipment, the position of the nozzle can be adjusted manually, and the nozzle should be equipped with temperature monitoring device.
Adopting PLC circuit control, the electric control is stable, human-machine interface can be used, the operation is simple and convenient, with single mold and double mold function, one person can operate two pairs of molds of different sizes, which greatly improves the efficiency of work.Translated with www.DeepL.com/Translator (free version)
2、The equipment adopts single wax storage cylinder, which has temperature control capability and can provide accurate and repeatable wax temperature, so that the wax material with set temperature can be supplied steadily and continuously. At the same time, the wax storage cylinder should be equipped with a liquid level controller, which is used to monitor the wax volume in the storage cylinder and provide control signals for the waxing device.
3、The waxizer with vacuum suction device on the wax storage cylinder of the equipment can realize automatic filling and waxing of the granular wax material to avoid over-temperature of the wax material, and it can be linked and controlled with the wax storage cylinder and vacuum suction device to realize automatic filling of the wax material.
4、The equipment should be able to send all the wax materials in the injection nozzle, pipe and wax injection cylinder back to the wax storage cylinder when the equipment is shut down.
5、The pressure injection unit can realize the smooth pressure injection of wax material, should ensure the accurate and smooth output pressure, and should not allow large fluctuation of pressure during the pressure injection process, and should be equipped with temperature monitoring.
6、Equipped with horizontal injection nozzle on the equipment, the position of the nozzle can be adjusted manually, and the nozzle should be equipped with temperature monitoring device.
Adopting PLC circuit control, the electric control is stable, human-machine interface can be used, the operation is simple and convenient, with single mold and double mold function, one person can operate two pairs of molds of different sizes, which greatly improves the efficiency of work.Translated with www.DeepL.com/Translator (free version)
Quick Details:
Place of Origin: Shandong, China
Brand Name: Huifeng Casting
Model Number: 025
Product name:
Hot Sale Foundry Cast Iron Casting Base Cast Iron Parts
Name:
Iron casting part
Packing: Carton
Service: OEM\ODM
Color: Customized Color
Packaging & Delivery
Packaging Details
In wooden casing or steel case.
Optional inner package: polybag or woven bag.
Port Tianjin Xingang
