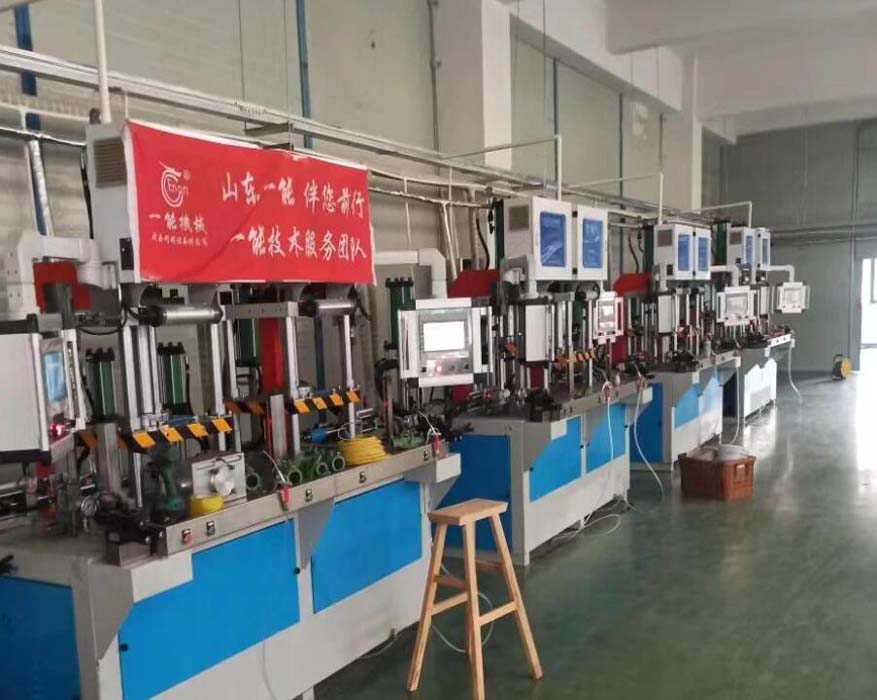

Double Column Free Cylinder Wax Injection Machine
Leehwa Casting manufactures Double Column Free Cylinder Wax Injection Machine in Dongying City, Shandong Province, China. We have our own factory of Double Column Free Cylinder Wax Injection Machine. Leehwa provide the high quality and competitive price on Double Column Free Cylinder Wax Injection Machine for you. Contact us now for quotation.
- 20+ years Castings manufacturing experience
- Up to 5 years of warranty
- Full support on your customised requirement
1,Technical parameter
| Explain | Unit | YN-SMZ-16LB-Y |
| Clamping force (max) | T | 16 |
| Mold use space(L×W×H) | mm | 520×570×600 |
| Up and down the mold trip | mm | 500 |
| Minimum height of the mold | mm | 100 |
| hydraulic oil tank | L | 150 |
| PLC+Touch screen | YES/NO | YES |
| The nozzle is electrically powered up and down | YES/NO | YES |
| Mold use form | Can be up and down fixed automatic mode, hand push single mode or double mode | |
| Paraffin pressure form | Single and multiple segments can be selected | |
| Maximum wax injection (wax cylinder) | L | 4 |
| Maximum injection pressure | MPa |
0~10 (
Hydraulic variable pressure control )
|
2,Configuration instructions
1, electrical components: Chint , PLC programmer for Taiwan Delta series, close switch series components for Omron, Japan.
4. The nozzle diameter of the duplex wax injection machine is Φ 6-9mm. The wax injection speed is about 3-8 mL / s
3,Description
3.1. Wax-free cylinder is adopted to shorten the production process of precision casting. There is no need to stand for 24 hours through the wax incubator.
3.2. Three-layer wax tube cooler, heating or cooling by heat medium oil, wax temperature control, reliable performance. The temperature error is controlled within ±0.5ºC and the shrinkage rate is controlled within 0.5%.
3.3. The nozzle is adjustable, which can be adjusted with the mould up, down, left, right and back.
3.4. Wax flow pressure and flow are controlled separately. It can realize the secondary supercharging, so as to effectively prevent the wax mold shrinkage, the wax quality is better.
3.5. Hydraulic components and electrical components are imported, stable and reliable performance, high cost performance.
3.6. According to customer requirements, the machine can achieve automatic timely control of temperature, pressure and flow.
4,Detail image
4.1
·Automatic detailed parameters such as pressure and action time can be modified in the man-machine interface
·Ship-type switch and various button operations, hydraulic pump, thermal oil pump and manual operation, etc.
4.2
·Collection and execution of PLC input and output actions.
·Non-contact intermediate relay, input220V , output DC24V
·Main power leakage protection switch
·Motor AC contactor and thermal overload protector, adjusted according to motor matching current
4.3
·Wax road cold/hot oil conversion solenoid valve
·Cooling cylinder ice water solenoid valve
·Cooling cylinder cold/hot oil conversion solenoid valve
5.Transport package
Packed with steel structure and MDF to ensure the safety of equipment during transportation.
