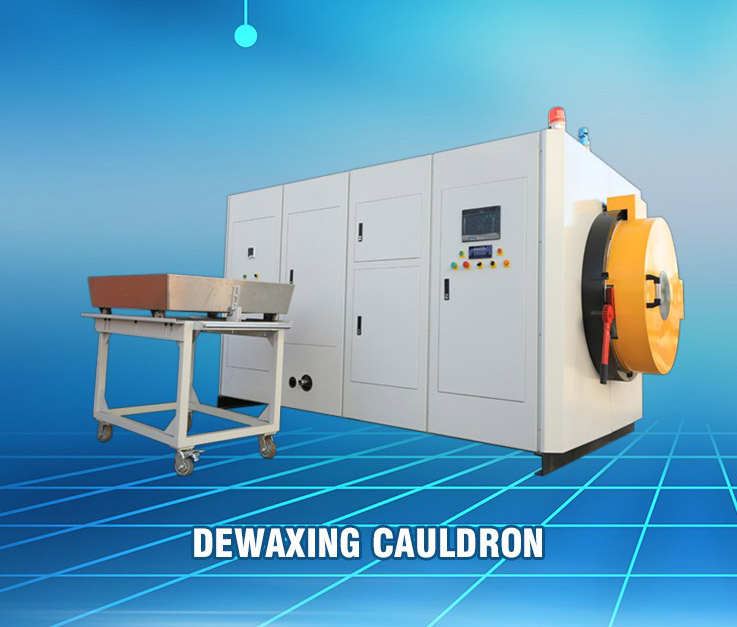

Dewax machine
Huifeng Casting manufactures sand castings and iron castings in Dongying City, Shandong Province, China. We have our own factory of iron castings. Huifeng provide the high quality and competitive price on sand castings for you. Contact us now for quotation.
- 20+ years Castings manufacturing experience
- Up to 5 years of warranty
- Full support on your customised requirement
1. Dewaxing autoclave Equipment with mechanical pressure protection electric pressure protection and temperature control of indirect protection。
2. USES the advanced pressure transmitter and pressure control of three，To realize automatic booster. Effectively prevent shell crack and reduce the energy consumption。
3. Water USES advanced magnetic sensing level control instrument automatic control，Make reliable operation use safety more to save energy。
product introduction

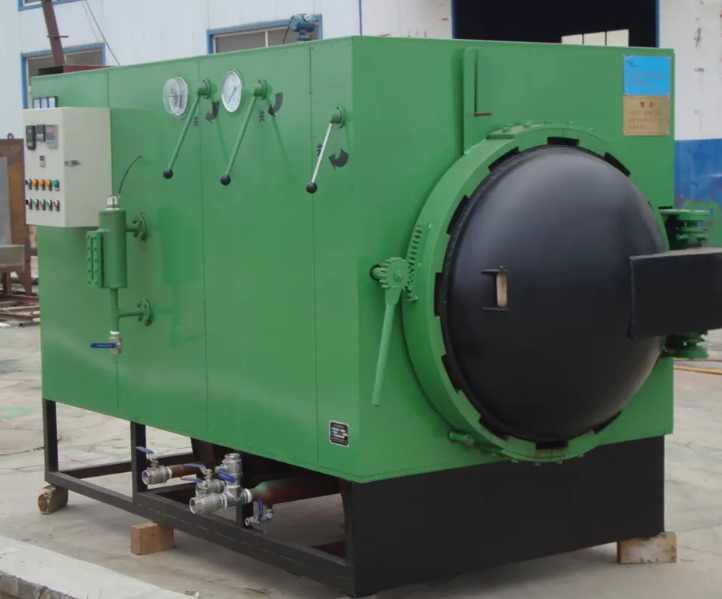

electric integrated dewaxing autoclave
The whole machine has the certificate of pressure vessel issued by the state inspection
Stainless steel heating pipe.
Dewaxing kettle door structure with ring lock, safe and convenient operation is obvious.
With the door is not closed to prevent false alarm.
Leakage protection switch.
Automatic water supply with low water level protection
|
The project name
|
unit
|
DTF09-80
|
|
The workspace
|
mm
|
800*1000*750
|
|
The rated pressure
|
MPa
|
1.1
|
|
The rated temperature
|
℃
|
185
|
|
Regulating range
|
MPa
|
0～0.8
|
|
Precision pressure show
|
MPa
|
±0.01
|
|
Pressure control precision
|
MPa
|
±0.03
|
|
Booster speed
|
|
0.5MPa/3s
|
|
Time control range
|
h
|
0～99.99
|
|
Installed power
|
KW
|
96
|
|
Master mode
|
|
A three-stage
|
|
Water supply mode
|
|
Full automatic + manual
|
|
Installation dimensions
|
mm
|
2650*1240*2400
|
|
Equipment weight
|
T
|
2.8
|
